FLUX WALL COMPACT: powerful performance in a compact design

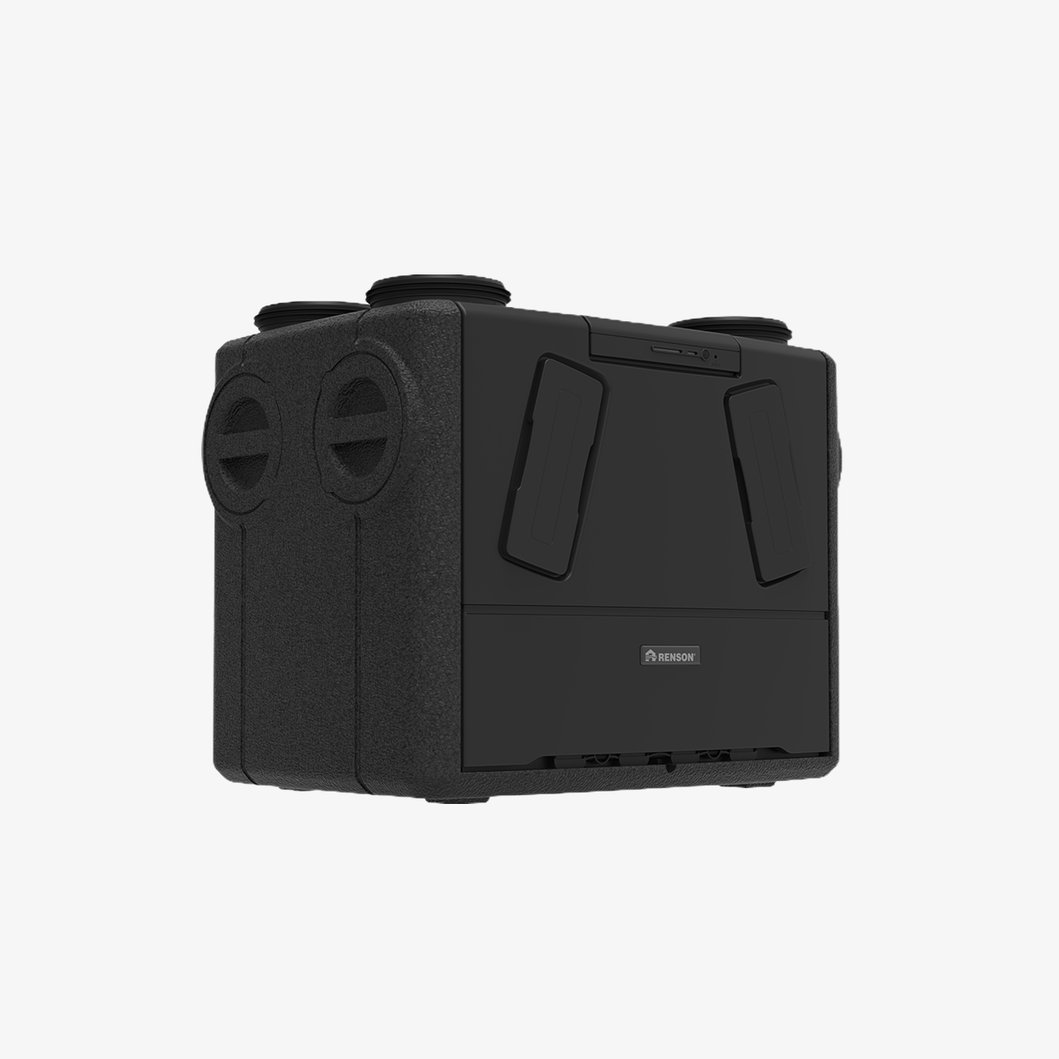

FLUX WALL COMPACT System
Key features:
- Airflow rates up to 350 m³/h in a compact unit
- Only 55 cm high, ideal where installation space is limited
- One of the highest-performing units in its category
- Easy installation that can be carried out by a single installer
- Top and side connections for flexible integration
- Left/right configuration adjustable via the app
- Components can be replaced in less than 5 minutes
- Heat recovery efficiency up to 91%
- Quiet operation
- Wide range of accessories and filters available

Available versions:
- 225 m³/h: heat recovery efficiency up to 91%, sound level of 45 dB(A)
- 275 m³/h: heat recovery efficiency up to 89%, sound level of 47 dB(A)
- 350 m³/h: heat recovery efficiency up to 88%, sound level of 50 dB(A)

Common specifications:
- Connection diameter: Ø 160 mm
- Weight: 21 kg
- Maximum power consumption: from 2 × 45 W to 2 × 79 W depending on the version

Features

  • Reference

    190134

  • Ventilation type

    Restorative heat (type D)
